단일 샤프트 파쇄기/파쇄기

AMIS / WEIMA WT 15

No. 10027

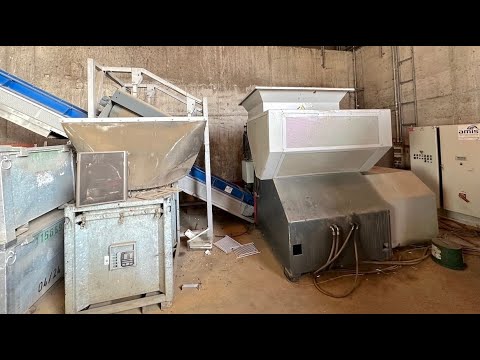

Single-shaft shredder AMIS / WEIMA WT 15

Used, year of construction 2018, approx. 250 operating hours

According to our customer, the machine is fully functional and can be viewed and tested on site

Single-shaft shredder for cables, plastics & recycling

Feed opening 1500 x 1160 mm LW
Hjdpfxsxwdius Aa Ssfc
Rotor width 1500 mm
Rotor diameter 368 mm
Rotor speed approx. 90 rpm
Motor output 90 kW
Throughput capacity approx. 5 tons per hour (depending on material)
System output 99 kW
Power consumption 210 A
Voltage 400 V / 50 Hz
PLC control Siemens SIMATIC
Built-in screen with 20 mm screen hole diameter
Replacement screen with 50 mm screen hole diameter

The high-performance shredder in the WT series is ideal for processing a wide variety of plastics - especially difficult, flexible materials such as films, filaments, big bags, tapes, carpets, textiles, foams and all loose and non-bulky waste materials. The WING-RAM swing arm ensures that even contaminated or moist material is fed safely.

Incl. angled conveyor belt / discharge belt AMIS FB 7000 x 1500 x 580 / year of construction 2018 / 1.5 kW
Incl. magnetic separator AMIS

Installation dimensions approx. 9000 x 3500 x 3950 mm LWH
Transport dimensions single-shaft shredder approx. 3000 x 2700 x 3200 mm LWH
Weight approx. 12500 kg

Sale on behalf of customer, ex location near 69123 Heidelberg, without dismantling, without transport and assembly
Dismantling, transport and loading by us optionally possible

Errors in description and price excepted

To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Pictures and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or shipment

Terms of delivery: ex location
