범용 머시닝 센터

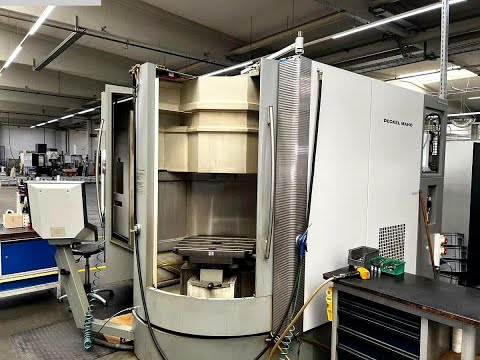

Deckel Maho DMC 60 T

5-axis machining centre with rotary table (C-axis) and swivelling head (B-axis)

Machine comes from a large facility and has been maintained preventively.

TECHNICAL DETAILS
X-axis travel: 760 mm
Y-axis travel: 560 mm
Z-axis travel: 560 mm
Control: 840 D Powerline Siemens
Tool holder: SK 40
Number of magazine tool positions: 60
Spindle speed: 0–12,000 rpm
Pallet size: 630 x 500 mm
Feed rate: 20–15,000 mm/min
Rapid traverse: 50 m/min

MACHINE DETAILS
Total connected load: 64.2 kVA
Total power requirement: 26 kW
Machine weight: 12 t
Space requirement: 5.2 x 4.5 x 2.45 m

Spindle hours: 20,844 h
Operating hours: 58,437 h

Dimensions and Weight
Machine body length: 3,450 x 2,400 x 2,650 mm
Machine body weight: approx. 6.50 t

Tool magazine size: 2,600 x 1,000 x 2,000 mm
Tool magazine weight: approx. 0.50 t

Coolant unit size: 1,850 x 1,750 x 1,500 mm
Coolant unit weight: approx. 0.50 t

Chip conveyor size: 3,200 x 1,000 x 1,700 mm
Chip conveyor weight: approx. 0.50 t

EQUIPMENT
- Pallet changer with 2 pallets
- Tool changer with 60 positions
