Elumatec SBZ 150

Elumatec SBZ 150

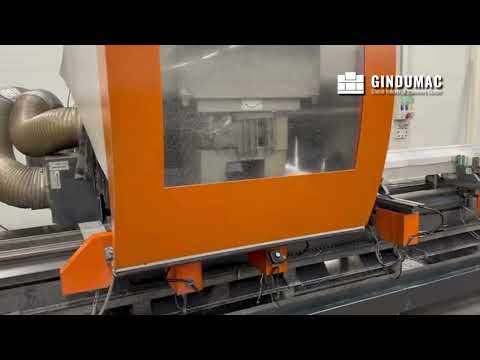

This 5-axis Elumatec SBZ 150 was manufactured in 2004. It features a CNC profile machining center with a maximum machining length of 9,220 mm and a spindle speed of 34,000 rpm. The machine includes a tool magazine with standard and special tools, and supports 6-sided machining with optional angle head. It's dismantled and ready for delivery. If you are looking to get high-quality milling capabilities consider the Elumatec SBZ 150 machine we have for sale. Contact us for more information.

Additional equipment


• 2-zone pendulum operation

• Angle milling head for bottom-side machining (optional)

• Automatic length measurement

• Barcode scanner

• Label printer

• Cycle time monitoring

• Tool holders, collets, saw blades, tools included

• eluCad (office software package for production optimization)

Machine Benefits

Technical Machine Benefits


• Max. Machining length without profile end machining: 9220 mm

Ihodpfsyar Dtjx Abhot
• Max. Machining length with profile end machining: 8900 mm

• A-axis swivel range: ±110°, freely programmable in 0. 1° steps

• C-axis rotation range: ±182°, freely programmable in 0. 1° steps

• Max. Milling cutter diameter: 100 mm

• Max. Disc milling cutter diameter: 100 mm

• Max. Saw blade diameter: 400 mm

• Electrical connection: 400 v, 3-phase, 50 hz, 80 a

• Compressed air consumption: approx. 200 l/min (with spray mist system)

Extra Information

All operations (milling, drilling, tapping, slotting, sawing) performed on stationary profile bars
6-sided machining possible using optional angle head
Tool magazine includes standard tools, special tools (e.g., angle milling head), and saw blade
Direct-drive motors in all axes for fast positioning with low wear
The machine is dismantled and ready for delivery

Control Unit
Windows-based control system with USB and network ports
3D graphical workpiece visualization
Automatic clamp detection and positioning

Controller
5-axis control for spatial machining
