스위블 벤딩 머신

FASTI 212/30 - 4

sheet width 3040 mm
plate thickness 4 mm
distance between columns 3040 mm
stroke of upper beam 200 mm
adjustment of lower and bend clamping 100 mm
total power requirement 6,4/3 kW
weight of the machine ca. 6,3 t
dimensions of the machine ca. 4,3 x 1,2 x 1,8 m

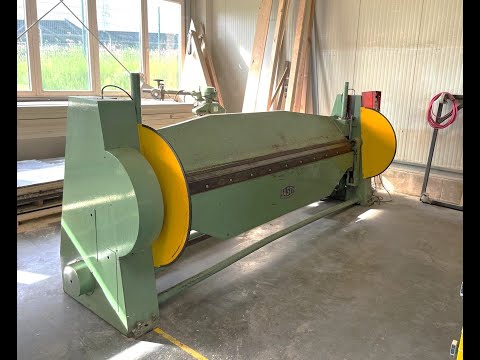

Motorized folding machine with double-sided bending beam drive, lower, upper
and bending beam adjustable, drive motors as brake motors - slip clutches as
Djdpjxwzbbsfx Afqecb
overload protection, bending angle adjustment via potentiometer, operating
modes: individual switching for each work step and sequence control for the
complete work cycle, SEGMENTED TOP RAIL 120 mm height (Photo 7).Please notice
that such a machine now costs about €70.000,--.
As usual, the sheet thickness is based on a strength of 40 kg / mm².
Machine dealer with own stock of 2500 m².
