CNC 선반

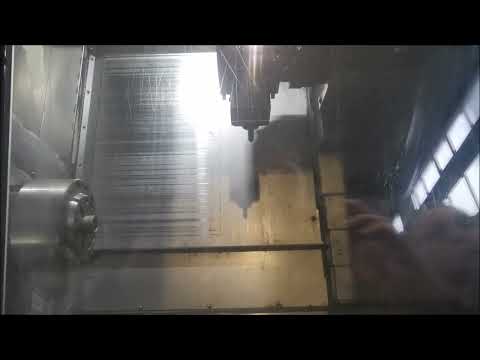

GILDEMEISTER CTX 400

turning diameter 400 mm
turning length 549 mm
control HEIDENHAIN Eltropilot
swing over bed 570 mm
travel -x axis 220 mm
travel -z axis 635 mm
main spindle bore 79 mm
main spindle speed 25 - 5000 U/min
main spindle drive 21 kW
max. torque on the spindle max. 240 Nm
120 mm
c-axis, speed 100 U/min
C-axis Haltemoment 200 Nm
C-axis resolution < 0,04 °
sub spindle bore 56 mm
sub spindle speed 25 - 5000 U/min
sub spindle drive 9 kW
max. torque on the spindle max. 72 Nm
90 mm
c-axis, speed 100 U/min
Knedpfox I Sfnjx Ad Hsf
C-axis Haltemoment 150 Nm
C-axis resolution < 0,04 °
feed power X/Z axis 3,5 / 7 Nm
rapid traverse X-axis 20 m/min
rapid traverse Z-axis 24 m/min
tool turret 1 x 12 Stationen
number of driven tool stations 12
speed of driven tools 4.000 U/min
total power requirement 44 kVA
weight of the machine ca. 5,7 t
dimensions of machine L x W x H 3,65 x 2,03 x 2,1 m
Accessories: collet fixture HAINBUCH on main spindle,
3-jaw chuck RÖHM, 140 mmø, on sub spindle,
3 collets, chip conveyor, coolant with band filter device
