Press brake
GUIFIL FCS-20/50

Name: GUIFIL FCS-20/50
Brand: GUIFIL
Availability: InStock

제조 연도

2003

상태

중고 (완전히 작동합니다)

위치

Nemenčinė

기계 정보

기계 명칭:: Press brake

제조업체:: GUIFIL

모델:: FCS-20/50

제조 연도:: 2003

상태:: 중고

기능성:: 완전히 작동합니다

가격 및 위치

위치:: Švenčionių gatvė 112, 15168 Nemenčinė, Lithuania

전화하기

기술 세부 사항

동력:: 5.5 킬로와트 (7.48 마력)

입력 전압:: 400 V

입력 전류:: 12 A

입력 주파수:: 50 헤르츠

가압력:: 50 t

행정 길이:: 200 mm

작동 속도:: 10 mm/s

후진 속도:: 145 mm/s

테이블 폭:: 2,050 mm

목 깊이:: 350 mm

기둥 사이의 간격:: 1,600 mm

오일 탱크 용량:: 160 l

총 길이:: 2,790 mm

총 폭:: 1,850 mm

총 높이:: 2,520 mm

총중량:: 3,500 kg

제안 세부 정보

광고 ID:: A22379077

업데이트:: 마지막 업데이트: 21.07.2026

설명

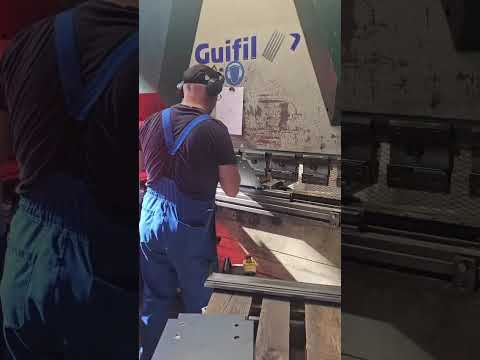

Hydraulic press brake Guifil FCS 20/50 is a compact and reliable bending solution designed for precision sheet metal work. Manufactured in Portugal by Guimadira Máquinas e Ferramentas, this model is well suited for small to medium-sized workshops requiring accuracy and efficiency.

With a bending force of 50 tons (500 kN) and a working length of 2050 mm, the machine is ideal for processing thinner materials and smaller components. Its rigid frame construction ensures stable operation, while the hydraulic system provides smooth and consistent bending performance.

Kdodpfx Aqjzm Twgerjp
The press brake is equipped with a DELEM control system, allowing straightforward operation and repeatable results. The back gauge system supports accurate positioning and improves productivity in daily use.

This model is a practical and cost-effective choice for companies looking for a dependable entry-level press brake.

The press brake is equipped with punches and dies. It has backgauge X1-X2-R-Z1-Z2.
