유압식 절단기 (기요틴형)

HACO TS 3012

Hydraulic Guillotine Shear
Hedpfx Adsyymaks Ajk
Make: HACO Model: TS 3012
Year: 2011

Technical Specifications

Manufacturer: HACO
Model: TS 3012
Year of manufacture: 2011
Sheet width: 3050 mm
Sheet thickness: 12 mm
Cutting angle: 0.5 – 3°
Strokes per minute: 17/7
Drive motor: 22.5 kW
Number of hold-downs: 18 pcs.
Space requirements: approx. L 4.0 x W 2.0 m (plus 0.6 m swing stop and 0.8 m light curtain) x H 2.2 m
Machine weight: 8 t

Features

- SP 9 control system
- Automatic cutting angle adjustment
- Central clearance adjustment, manual, via hand lever next to the control
- 600 mm swing stop
- Motorized backgauge 1000 mm
- Cutting edge illumination

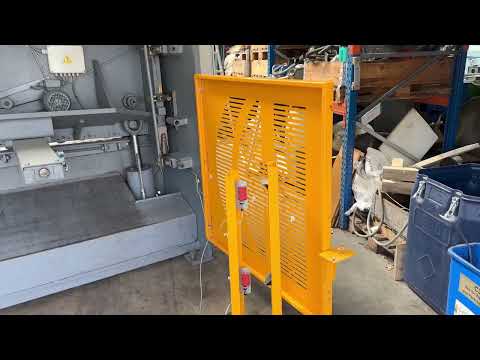

- Rear area secured by safety light barrier
- Operating manual
- Foot switch

All information provided without liability.

A demonstration under power is possible at any time in our showroom.
