오프셋 인쇄기HEIDELBERG
SM74-2PH
오프셋 인쇄기
HEIDELBERG
SM74-2PH
제조 연도
1997
상태
중고
(완전히 작동합니다)
위치
Mulazzano

사진은 보여줍니다
지도 표시
기계 정보
가격 및 위치
- 위치:
- Via Jenner 13, 26837 Mulazzano, Italia

전화하기
기술 세부 사항
- 색상 채널:
- 2
- 최소 용지 너비:
- 520 mm
- 최대 용지 폭:
- 740 mm
제안 세부 정보
- 광고 ID:
- A21800978
- 참조 번호:
- HDSM74-2PH97
- 업데이트:
- 마지막 업데이트: 27.04.2026
설명
HEIDELBERG SM74-2PH, Year 1997
Serial No. 622.012
83 million impressions
Sheet-fed offset press – 2-colour, high pile delivery
Perfecting press 2/0 or 1/1
20 x 28 inch (520 x 740 mm)
Technical specifications:
- Maximum speed: 15,000 sheets/hour
- Maximum paper size: 520 x 740 mm
- Minimum paper size: 210 x 280 mm
- Paper thickness: 0.03–0.6 mm
- Maximum print area: 510 x 740 mm
- Plate size: 605 x 745 mm, thickness 0.30 mm
- Blanket size: 772 x 627 mm, thickness 1.90 mm
- Dimensions (L x W x H): 6.1 x 2.8 x 1.9 m
- Power requirement: approx. 39 kW
- Weight: approx. 14,000 kg
Accessories included:
Nwsdpfjy Hmawsx Akfjf
- Stream feeder
- Double sheet detector – electric
- Electronic side lay control
- Alcolor continuous dampening system
- Baldwin cooling and recirculation unit
- CPTronic, CPC 1.04 – ink remote control (axial, circumferential, diagonal) with digital pen and cassette
- Machine digital control and diagnostics with axial, circumferential, and diagonal register control
- Autoplate (semi-automatic plate changer)
- Automatic blanket washing device
- Automatic impression cylinder washing device
- Automatic ink roller washing device
- Preset feeder (automatic paper size adjustment)
- Chromed cylinders
- Powder sprayer
- Oil drip tray, tools, documentation
- Complete with all standard parts and accessories
Condition: No damages to cylinders and gears
Availability: Immediate
Inspection: Machine can be inspected in production near Milan, Northern Italy

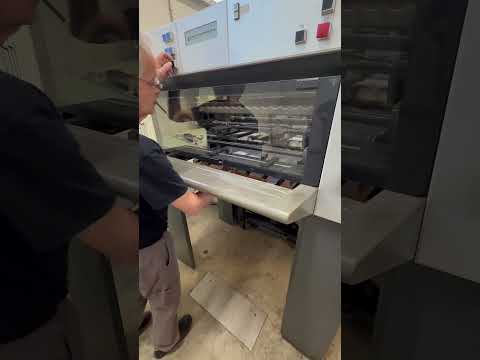

Video available on request
이 광고는 자동으로 번역되었습니다. 번역 오류가 있을 수 있습니다.
Serial No. 622.012
83 million impressions
Sheet-fed offset press – 2-colour, high pile delivery
Perfecting press 2/0 or 1/1
20 x 28 inch (520 x 740 mm)
Technical specifications:
- Maximum speed: 15,000 sheets/hour
- Maximum paper size: 520 x 740 mm
- Minimum paper size: 210 x 280 mm
- Paper thickness: 0.03–0.6 mm
- Maximum print area: 510 x 740 mm
- Plate size: 605 x 745 mm, thickness 0.30 mm
- Blanket size: 772 x 627 mm, thickness 1.90 mm
- Dimensions (L x W x H): 6.1 x 2.8 x 1.9 m
- Power requirement: approx. 39 kW
- Weight: approx. 14,000 kg
Accessories included:
Nwsdpfjy Hmawsx Akfjf
- Stream feeder
- Double sheet detector – electric
- Electronic side lay control
- Alcolor continuous dampening system
- Baldwin cooling and recirculation unit
- CPTronic, CPC 1.04 – ink remote control (axial, circumferential, diagonal) with digital pen and cassette
- Machine digital control and diagnostics with axial, circumferential, and diagonal register control
- Autoplate (semi-automatic plate changer)
- Automatic blanket washing device
- Automatic impression cylinder washing device
- Automatic ink roller washing device
- Preset feeder (automatic paper size adjustment)
- Chromed cylinders
- Powder sprayer
- Oil drip tray, tools, documentation
- Complete with all standard parts and accessories
Condition: No damages to cylinders and gears
Availability: Immediate
Inspection: Machine can be inspected in production near Milan, Northern Italy
Video available on request
이 광고는 자동으로 번역되었습니다. 번역 오류가 있을 수 있습니다.
