Kinshofer KINSHOFER SONDERPREIS Greifer , Steinstapelzange

!!!!! SPECIAL PRICES !!!!!

ALL ITEMS AVAILABLE FOR IMMEDIATE DELIVERY!

KINSHOFER Clamshell Bucket 604HPX 250 liters (50cm) incl. KM 04 S69-30 Rotator, pin connection

KINSHOFER Clamshell Bucket 604HPX 325 liters (60cm) incl. KM 04 S69-30 Rotator, pin connection

KINSHOFER Crane Fork KM415 in stock

KINSHOFER Stone Stacking Grab KM332V 1100C in stock, IMMEDIATELY AVAILABLE!

Descriptions:

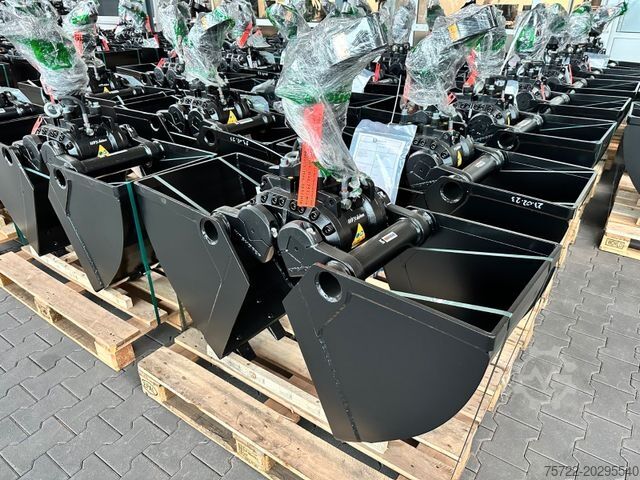

KINSHOFER Clamshell Bucket 604HPX 250/325L complete package
The universal two-shell grab KM 604HPX equipped with the HPXdrive Standard is ideal for daily use, for digging and loading with a truck-mounted crane. The advantages of the revolutionary HPXdrive technology make it a reliable and easy-to-operate attachment.
- Available in 250L or 325L capacities
- Bolt-on teeth
- HPXdrive Standard
Gjdpfx Aasxnn Nyjtskc
- Hydraulic check valve and pressure relief valve
- Closing force: 19 kN at 26 MPa operating pressure
- Color: Black

KINSHOFER Rotator KM04S69-30 pin connection
The applied 'Gerotor' principle allows for the construction of very compact and effective rotators. Operators particularly appreciate its precise starting and stopping characteristics. Specifically: the grab does not rotate unintentionally when digging, it stops exactly even under maximum load, and there is no need to counter-steer when handling long loads.
- Load capacity up to 4500 kg
- Motor head made of steel
- Max. operating pressure for rotation: 370 bar
- Max. hydraulic flow for rotation: 40 l/min
- Max. hydraulic flow for swivel: 75 l/min
- Connections: M18 x 1.5

_____

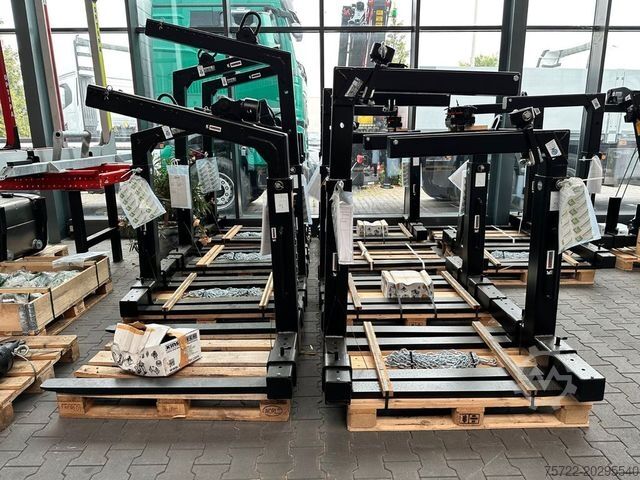

KINSHOFER Crane Fork, version KM415-2000-600. Type: up to 2000 kg with 1150 mm tine length. Available with lifting eye only, or also with rotator/rotary drive KM04S. Optional quick-change device KM505 available upon request. ALL AVAILABLE FOR IMMEDIATE DELIVERY!

_____

KINSHOFER Stone Stacking Grab KM332-1100 complete package incl. rotator, hoses, suspension, pressure rails, and much more. IN STOCK, AVAILABLE IMMEDIATELY!

Stone Stacking Grab KM332-1100 complete package
The technically advanced stone stacking grab KM 332 is highly versatile for both palletized and non-palletized building materials.
- Fixed or adjustable insertion depth with parallel opening and closing gripping arms, hydraulically actuated.
- Versatile usage thanks to opening widths from 400 mm to 1400 mm, e.g., for loading individual concrete elements such as kerbstones up to entire packs of bricks.
- Adjustable insertion depths available on KM 332V – ideal for loads of varying heights.
- Synchronization of the gripping arms via two hydraulic cylinders with a differential circuit.
- Safety ensured by an overpressure valve in the hydraulic system, protecting against overload. A check valve prevents the grip from releasing even in the event of pressure loss from the carrier machine.
- Durability thanks to generously dimensioned bearings, integrated lubricant reservoir, automatic main bearing wear compensation, and spherical central bearing on the cylinders.

KINSHOFER Rotator KM04S69-30 pin connection
The applied 'Gerotor' principle allows for the construction of very compact and effective rotators. Operators particularly appreciate its precise starting and stopping characteristics. Specifically: the grab does not rotate unintentionally when digging, it stops exactly even under maximum load, and there is no need to counter-steer when handling long loads.
