MAN TGM 18.320 4x4 BB KRANKIPPER FASSI F195A.2.24

MAN TGM 18.320 4x4 BB WITH PAVIC 3-Way Tipper Body AND FASSI F195A.2.24

A vehicle suitable for landscaping and horticulture, civil engineering, road construction, site operations, or as a municipal service vehicle!

Vehicle:

* MAN TGM 18.320 4x4 BB crane tipper
* CC driver’s cab: compact (narrow, short, standard height)
* Wheelbase: 3,900 mm
* Suspension: leaf/leaf
* Drive: 4x4
* Tires FA: 2x 295/80R22.5 RA: 4x 295/80R22.5
* Gross weight: 18,000 kg
* MAN PowerMatic 08 13 OD automatic transmission
* MAN D0836 LFLAP diesel engine, 235 kW (320 HP) output, 1,250 Nm torque, Euro 6d
* Transmission features: EfficientRoll + MAN Idle Speed Driving
* Cruise control
* Rear axle differential lock
* Axial pump for hydraulics
* Tipper operation control inside the cab
* MAN EasyControl panel with 4 functions, operable from outside when door is open
* Trailer coupling RINGFEDER type 4040/G150B
* 2-line brake connection at rear of frame
* Sun visor in front of windshield
* Central locking with remote control

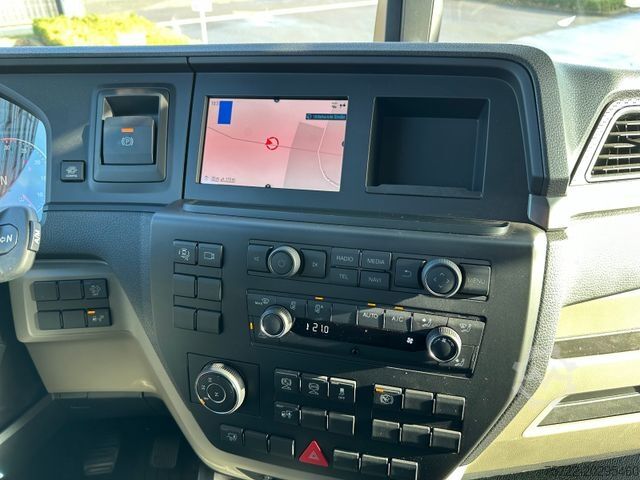

* MAN Media System Navigation Advanced 7-inch
* Online traffic for navigation
* Smartphone integration
* Heated, electrically adjustable rear-view and wide-angle mirrors
* Driver’s comfort seat, air-suspended, with lumbar support, shoulder adjustment, and heating
* Adjustable seatbelt height, driver’s seat
* 2 work lights on cab roof
* 2 halogen beacon lights on cab roof
* And much more.

Body:

* 3-way tipper body 4200x2420 mm, manufacturer: PAVIC
* Headboard height: 800 mm
* Sideboard height: 600 mm
* 8 fully recessed lashing rings in floor (4 per side)
* Material: Hardox 450
* Support for horizontal laying of sideboard with rubber pad (for long materials transport)
* Spring-assisted sideboards for easier opening and closing
* 2 lashing points on headboard (for tying down a compactor or grapple, etc.)
* Tipper body hot-dip galvanized, sideboards, etc. painted fully in 2K truck paint, RAL9016
* Subframe galvanized and painted in RAL 9011
* Left and right sides single-piece, openable on both sides pneumatically with air valve from the cab, all sides can be opened from below (pendulum type), manually from above, removable mid-stakes.
* Spring-assisted sideboards for easier opening and closing
* Additional body equipment: Pre-prepared locations in the pillars allow for later installation of a leaf grille (side extensions PLUS 500 mm for, e.g., transport of trimmings)

Loader crane:

Fassi F195A.2.24 (Hydraulic 4-stage extension) FASSI F195A.2.24 e-dynamic
* Lifting moment: 162 kNm (16.51 mt)
* Hydraulic four-stage outreach: 12.7 m
* e-dynamic hose equipment for 2 auxiliary devices
* Slewing range: 400°
* Dual linkage system with PROLINK (overbending knuckle arm up to 15°)
* Electronic overload protection with FX 500
* FASSI Stability Control FSC including LMB II
Gedpfxsxnn Hfo Aatekc
* Fassi RCS radio max - 6 functions with 3 joysticks (2-2-2)
* Special outriggers, support width 6.64 m, hydraulically extendable incl. FSC
* Outriggers operable via remote control
* FL-System (Full Lift) engageable rapid-action valve for extensions
* LED work lights

Financing / hire purchase as well as leasing / partial amortization leasing is possible with our leasing partner.

For further questions, our sales team will be happy to assist you.

This is a non-binding offer. Subject to prior sale, errors and modifications.
