MAN TGS 26.480 6x4 Krankipper Fassi/SOFORT VERFÜGBAR

Internal reference for customer inquiries: 3-198/AVAILABLE IMMEDIATELY

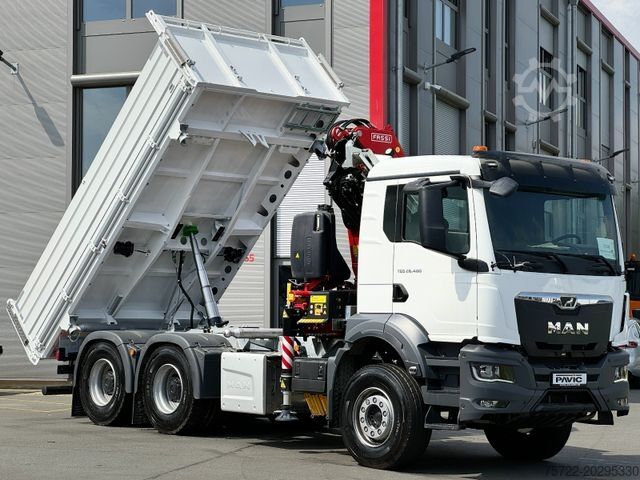

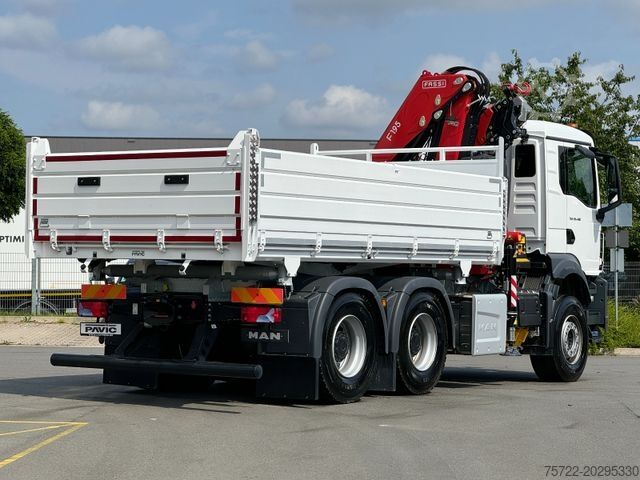

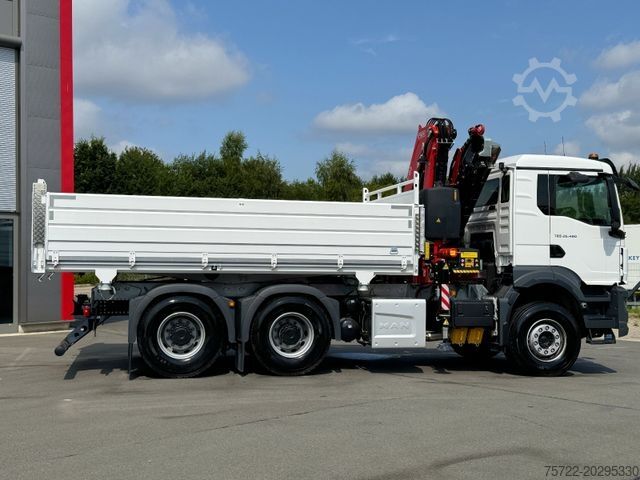

----MAN TGS 26.480 6x4 Three-way tipper with FASSI F195A.2.24 E-DYNAMIC loading crane

Loading crane:
* FASSI F195A.2.24 e-dynamic
* Lifting moment: 162 kNm (16.51 mt)
* Hydraulic quadruple extension reach: 12.7 m
* E-dynamic hose equipment for 2 auxiliary devices
* Slewing range: 400°
* Dual linkage system with PROLINK (articulating jib can be overextended up to 15°)
* Electronic overload shut-off device with FX 500
* FASSI stability control FSC incl. LMB II
* Fassi RCS radio remote control maxi – 6 functions with 3 joysticks (2-2-2)
* Special outrigger, support width: 6.64 m, hydraulically extendable incl. FSC
* Outriggers operable by remote control
* FL-System (Full Lift) switchable fast operation valve for extensions
* LED work lights

Vehicle:
* MAN diesel engine D2676 LFAI, 352 kW (480 hp) output, 2,400 Nm torque, Euro 6e
* MAN TipMatic 12.26 OD automatic transmission
* MAN TipMatic driving programs: Performance, Efficiency, and Offroad, up to 70,000 kg
Gtsdpsxnnzcjfx Aacst
* Drive configuration: 6x4
* Suspension: leaf/air
* Differential locks on driven rear axles
* Main wheelbase: 3,600 mm, wheelbase between rear axles: 1,400 mm
* Fuel tank capacity: 310 l, AdBlue tank capacity: 60 l
* Full brake assistant
* High-performance engine brake MAN EVBec, multi-stage
* Disc brakes on front axle, drum brakes on rear axles
* Trailer coupling RINGFEDER type 4040/G150A
* Cab type NN: practical (narrow, medium length, standard height)
* Mechanical tilting roof
* Air-suspended driver's comfort seat, with lumbar support, shoulder adjustment, and seat heating
* MAN EasyControl operating panel, 4 functions, operable from outside with door open
* Electric sunblind on windshield (interior)
* Refrigerator box
* MAN SmartSelect infotainment control with touchpad and direct access buttons
* MAN Media System Navigation Advanced 7 inch
* MAN Sound System Advanced
* Navigation map for Europe and Russia
* Online traffic information for navigation
* Standard driveline extended warranty for the 3rd year of operation up to 450,000 km (see service record for details)

Superstructure:

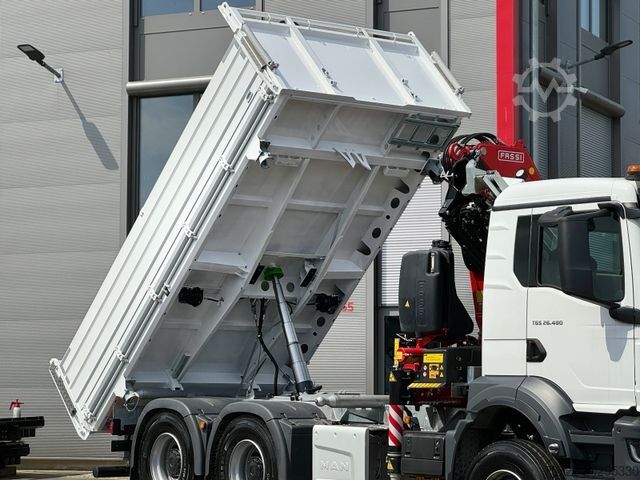

Three-way tipper body with FASSI F195A.2.24 E-DYNAMIC crane, mounted directly behind the cab (crane with top equipment: radio remote control, hydraulic stabilizers operable via radio, work spotlights, etc.)

Platform body:

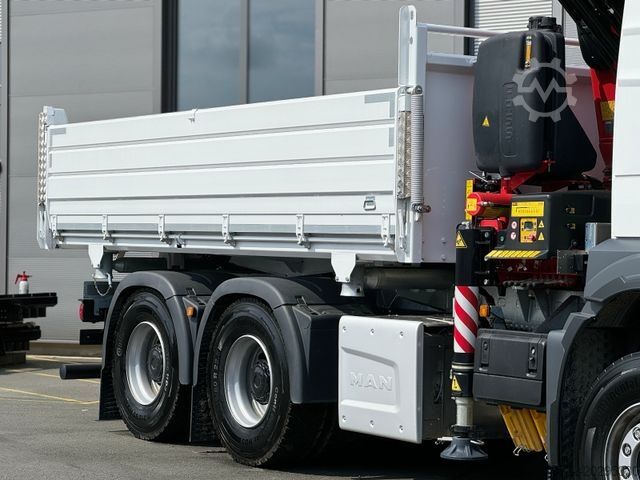

* Dimensions (L x W x H): 4,800 mm x 2,420 mm x 800 mm
* (Alternatively available: Loading length 5,200 mm x 2,420 mm x 800 mm)
* Front wall height: 1,000 mm

Subframe:
The subframe is a robust welded steel construction, two longitudinal beams with cross members to support the 5 mm thick tipper profile and the 4 mm floor plate made from Hardox or Naxtra. A 1,000 mm high fixed steel front wall with 2 round lashing eyes in the inner area, each positioned externally at half height. Corner stanchions are fixed with bottom-located locks. Rear and side walls (single pieces over full length) are made from aluminum hollow profiles, side walls are fold-down and swinging with sideboard assist. Tailgate also fold-down and swinging, with central locking integrated into the tipper profile. Floor plate made from Hardox or Naxtra with a thickness of 4 mm, cleanly welded to the tipper profile and the longitudinal and cross members. Press traverse and tipping arms are embedded and reinforced within the longitudinal beams. Lashing eyes (4 per side) are spaced along the outer edge of the tipper floor. Steel structure is made fr
