도로 안전 펜스용 견인식 항타기

Mazaka 600TL

Piler for road barriers on a two-wheel platform, towed type, brand Mazaka model MW 600TL. Suitable for road safety barriers, PV solar farms, agricultural posts, and fencing installations.

• Engine – Yanmar diesel, power 42 kW/Stage 3, 2200 rpm, fuel tank capacity 41 L
• Hammer – energy 900 Joules, operating pressure 120 bar, impact rate 520–1300 bpm
• Hydraulics – oil flow 50-100 L, pressure 180 bar, oil tank 90 L
• Maximum piling height 2900 mm
• Machine height 2066 mm, width 1700 mm, length 1600 mm, weight 2500 kg
• Piling unit rotation 180º, tilt forward 10º, backward 63º
• Mechanical winch included in the set and price
• Option – extra charge for Yanmar engine 42 kW/Stage 5 (emission standard) – 25,000 PLN net
Nwedpfxjxv Sgxs Ah Dec

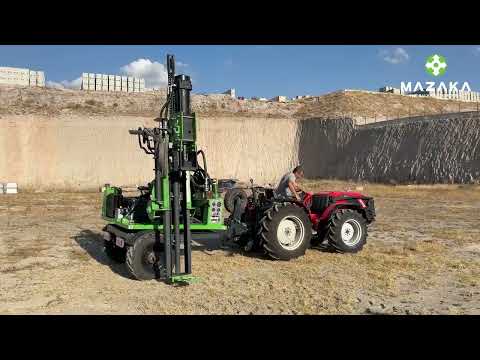

Link to YouTube video demonstrating the Mazaka MW 600TL two-wheel towed piling rig with 2.9 m mast in operation:
