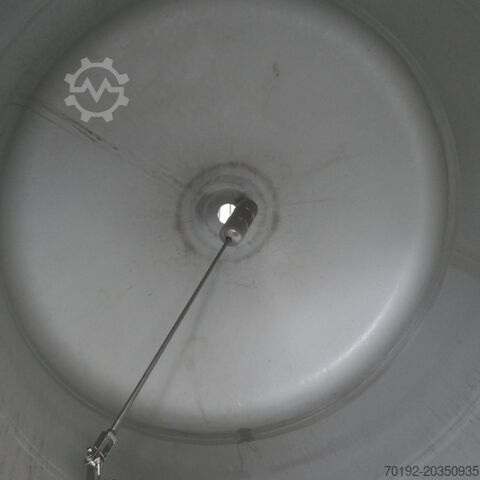

V4A로 제작된 2330리터 가열/냉각 가능 압력 탱크

meilibex A.Meili SA 8768

GENERAL INFORMATION
Equipment: Crane lugs
Bsdpfsxqb T Dex Abmslp
Design: Suspended
Remarks: Double jacket made of V2A around the lower cylinder section and the lower bottom; 3 stainless steel mounting feet; parts of the insulation collar were cut off during dismantling; one tank has no insulation (see photos)
External diameter: 1,650 mm
Internal diameter: 1,400 mm
Total height: 2,150 mm
Heating/cooling: Yes
Insulation: Yes
Max. permissible operating temperature: 200 °C
Max. permissible operating overpressure: 2.0 bar
Max. overpressure: 3.2 bar
Support type: Lugs
Location: Bremen
Technical documentation: Drawing
Cylinder temperature control: Double jacket
Nameplate:
Vacuum: 1.0 bar
Volume: 2,330 liters
Double jacket volume: 165.0 liters
Cylinder wall thickness: 6 mm
Jacket material: V2A 1.4301 (AISI 304)
Product-contacting material: V4A 1.4401/04 (AISI 316)
Condition: Used
Cylindrical height: 1,130 mm
Last application: Pharmaceutical chemistry

TANK
Max. operating temperature of tank / °C: 200 °C

HEATER/COOLING JACKET
Max. permissible negative pressure (double jacket / tube space / bar): 1.0 bar
Lower bottom temperature control: Double jacket

INSULATION
Insulation jacket: Riveted
Insulation jacket material: Aluminum

EQUIPMENT
Manhole / dome: In upper head (DN 400)
Outlet: Flange DN50
Note: Dents in insulation jacket

TECHNICAL DATA / DIMENSIONS
Lower bottom wall thickness: 5.8 mm
Upper head wall thickness: 7 mm
