형강 가위

METALLKRAFT HPS 65 DS

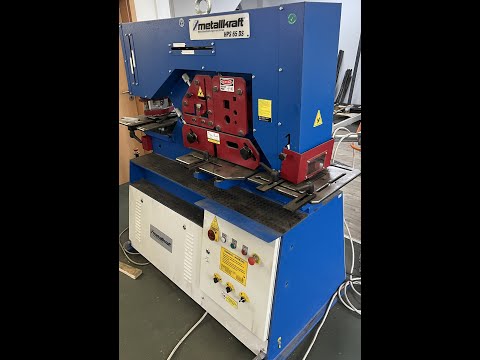

Profile Steel Shear Metallkraft HPS 65 DS

● Year of manufacture: 2023
● Machine number: 159789
● Condition: Good
● Delivery terms: Free loaded on truck
● Location: 97633 Gollmuthhausen
Dcjdpfx Afex Ebiholer
● Availability: Immediately, by arrangement
● Payment terms: Advance payment - by bank transfer
● Internal no.: MHE

Technical Data:

Notching station:
· Max. material thickness: 10 mm
· Max. notching width: 45 mm
· Max. notching depth: 90 mm
· Working height: 100 × 100 × 10 mm
Electrical Data:
· Drive motor power: 5.5 kW
· Connection voltage: 400 V
· Mains frequency: 50 Hz
Flat bar shear:
· Max. material width × thickness: 300 × 20 mm
· Max. material width × thickness: 375 × 15 mm
· Blade length: 380 mm
· Mitre cut 45°, max. leg length × thickness: 100 × 15 mm
· Working height: 900 mm
Round and square bar shear:
· Capacity round bar: 45 mm
· Capacity square bar: 45 mm
Punching station:
· Punching force: 65 t
· Max. diameter × sheet thickness (steel 400 N/mm²): 26 × 20 mm
· Max. diameter × sheet thickness (steel 400 N/mm²): 57 × 10 mm
· Throat depth: 305 mm
· Max. stroke: 55 mm
· Strokes per minute: 25
· Working height: 900 mm
Angle steel shear:
· Cutting capacity 90° L-profile: 120 × 120 × 12 mm
· Cutting capacity 45° L-profile: 70 × 10 mm
· Cutting capacity U-I profile (accessory): 120 × 58 mm
· Cutting capacity T-profile (accessory): 90 × 11 mm
· Working height: 1,140 mm

Scope of delivery:

✔ Tools as shown in the pictures

Dimensions & Weights:

● Installation dimensions (L x W x H) approx.: 1,700 x 950 x 1,880 mm
● Weight approx.: 1,600 kg

ℹ️ If you have any questions or wish to arrange a viewing, please contact us.

⚠️ Additional Information:

► On request, we can offer transportation to your destination
► The asking price is net, plus VAT
► The goods are sold without any warranty
► Technical data subject to change
► Sale subject to prior sale

❗ Sale of the goods exclusively to businesses ❗
