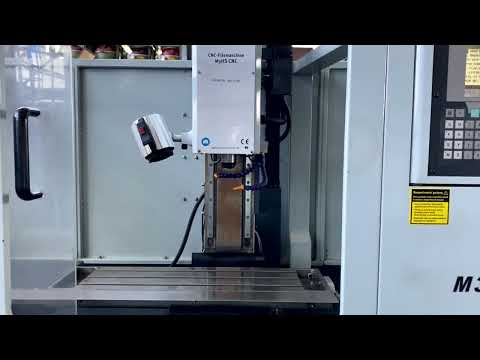

Universal Milling Machine

Optimum M3HS

Technical details:

x-travel: 200 mm
y-travel: 450 mm
z-travel: 460 mm
control: Siemens 802S base line
spindle taper ISO: ER 32
spindle head swivable left - right: nein °
turning speed range: 150 - 8600 U/min
feed:: X/Y/Z: 2000 - stufenlos mm/min
table surface area: 750 x 210 mm
interface: 232
total power requirement: 3 kVA
weight approx.: 760 kg
dimension machine xH: 1,9 x 1,2 x 2,1 m
Bjdpfx Aju Ndcajdhsww

Table movement: X-axis: 200mm and Y-axis: 450mm
spindle vertical Z-axis: 460mm
max. tool holder milling cutter: Ø 20mm
drilling capacity ST: Ø 13mm
max. distance spindle-table: 470mm

Equipment:
Manual control unit
cooling system
central lubrication
machine interior lighting
Machine feet

*
