와이드 벨트 샌더
Ott ALPHA 136

제조 연도

1992

상태

중고

위치

Aalen

지도 표시

기계 정보

기계 명칭:: 와이드 벨트 샌더

제조업체:: Ott

모델:: ALPHA 136

제조 연도:: 1992

상태:: 중고

가격 및 위치

위치:: Im Letten 2/1, 73433 Aalen, Deutschland

전화하기

기술 세부 사항

총 폭:: 2,100 mm

총 높이:: 2,200 mm

총 길이:: 2,150 mm

작업 폭:: 1,360 mm

총중량:: 2,600 kg

동력:: 11 킬로와트 (14.96 마력)

제안 세부 정보

광고 ID:: A20526355

참조 번호:: 04504

업데이트:: 마지막 업데이트: 18.11.2025

설명

No. 04504

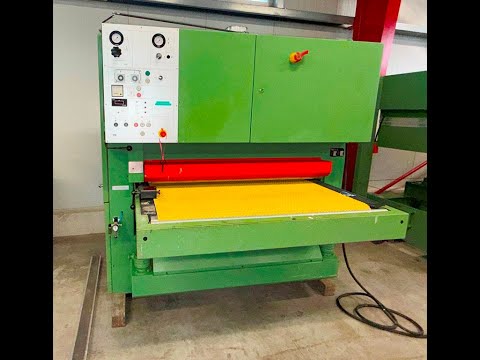

Wide belt sander Ott ALPHA 136

Used, year of construction 1992

Maximum working width 1360 mm
Workpiece thickness 3 - 160 mm
Sanding belt dimensions 2150 x 1380 mm
Sanding belt speed 18 m/s
Feed speed 4 / 8 m/min
Sanding unit Motor power 11 kW
Electronic belt oscillation
Hard rubberized contact roller, 150 mm diameter
Combination sanding unit with contact roller and sanding pad
For calibration and fine sanding
Rigid sanding pad for solid sanding and additional pneumatic sanding Pad for veneer sanding
Feed carpet with automatic centring
Brush roller
4-fold grit thickness compensation for contact roller
Semi-automatic workpiece thickness detection
Iodpfx Asxwqkxofnoii
Extraction nozzle diameter 1x 150 mm / 1x 120 mm
Operating pressure 6 bar
Machine ready to plug in with cable and 16 A plug
Technical documentation available

Transport dimensions approx. 2150 x 2100 x 2200 mm LWH
Weight approx. 2600 kg

To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”

Terms of payment: Prices plus VAT, payment before collection or dispatch

Terms of delivery: ex warehouse
