SCANIA R560 B 6x2-4 Containerpritsche/FASSI F545RA.2.28

Internal reference number for customer inquiries: 3-458 ---- IMMEDIATELY AVAILABLE!!!!

Scania R560 6x2 Container Flatbed with Fassi F545 RA 2.28 (8-section extension)

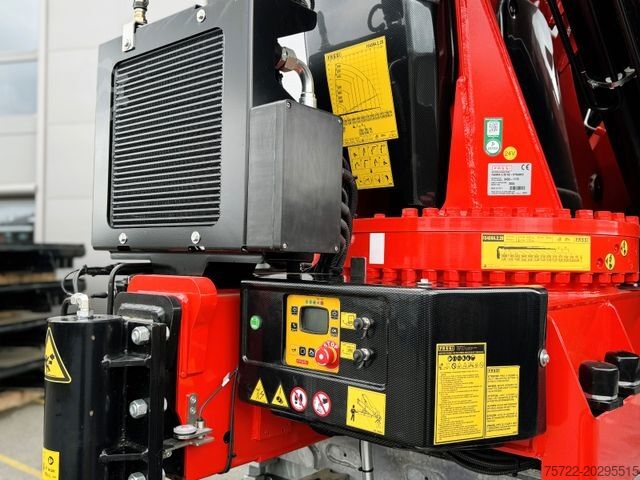

Loader Crane:
* FASSI F545RA.2.28 xe-dynamic – at 20.8 m, this crane still lifts 1,650 kg (optionally extendable with 2 manual extensions up to 24.9 m with 700 kg)
* Endless slewing range
* Dual linkage system with PROLINK (overbendable articulated arm up to 15 degrees)
* FASSI stability control
* Scanreco “V7 MAXI” radio remote control with color display & linear levers. Includes display of pressure values, load, tilt, etc.
* XF System (Extra Fast)
* XP System (Extra Power)
* FL System (Full Lift)
* Outriggers operable via remote control
* LED work lights
* Winch preparation (Note: A Fassi V30 winch can be retrofitted at any time. Available in our inventory!)
* and much more
Gedpfxjxnn I No Aatskc

Superstructure:
* Flatbed length 6,700 mm, load width 2,480 mm
* Loading edge approx. 1,035 mm (chassis top edge in driving position loaded: 875 mm)
* Outer frame profile chamfered with lashing points 2,000 daN as perforated pattern every 250 mm for strapping with closed sideboards, floor lowered by 27 mm
* Floor specification: 27 mm phenolic plywood made from Finnish birch, edges sealed, fully sealed all around
* Heavy-duty lashing rings: 8 pieces, 6,500 daN recessed and welded into the outer frame
* Headboard protection made of 9 mm phenolic plywood approx. 1,200 mm high
* Drop sides height 600 mm, multi-sectional
* Forklift impact protection, screwed, made of raw aluminum profile
* 4x container locks as slide-outs model TWIST-LOCK (Jost), galvanized, extendable for 3m containers
* 4 oversized warning signs with brackets, each with 1 red/white LED light
* Toolbox 1,200 x 600 x 600 mm
* 2x chain boxes 800 x 600 x 300 mm
* 6 LED work lights
* 4 stainless steel outrigger pad holders, 500 x 500 mm, with locking catch, mounted near the crane supports front and rear
* 4 plastic outrigger pads, 500 x 500 x 50 mm

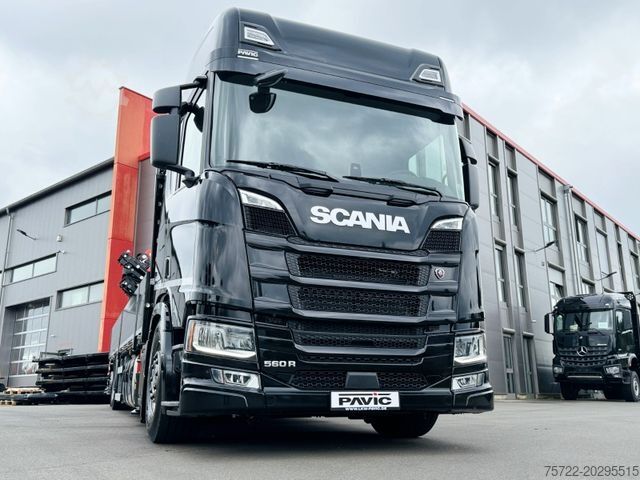

Truck:

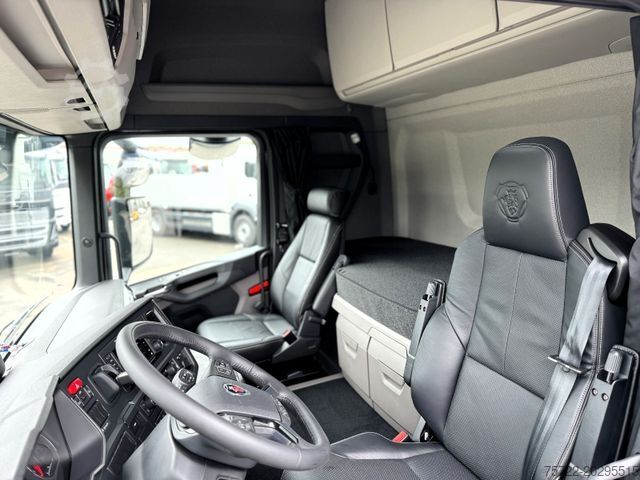

* R cab
* Engine DC13 173, 560 hp, Euro 6 (412 kW)
* Manual and automatic clutch
* G33CM gearbox is a 14-speed range gearbox with splitter gears, includes crawler gear and overdrive. The gearbox has a wide transmission ratio range and can be used in a variety of applications. Max. torque: 3,300 Nm
* R4700D with freewheeling function
* Tag axle, 8.5 t, steered, liftable (however, this function is technically unavailable due to crane’s own weight)
* AIR/AIR suspension
* Drive 6x2
* Tank 700 L, AdBlue? tank 80 L
* Centra axle drawbar coupling, D40, Ringfeder
* Full black leather trim
* Comfort bed, lower
* Refrigerator
* Leather steering wheel
* Sunblind
* Multimedia cockpit
* Navigation system
* Active Brake Assist
* Cruise control
* Hill-start assist
* and much more.

Financing / hire purchase as well as leasing / partial amortization leasing possible through our leasing partner.

For further questions, our sales team will be happy to assist.

This is a non-binding offer. Subject to prior sale, errors, and changes.
