평면 연삭기

Stöckel FL 10/60 SPS

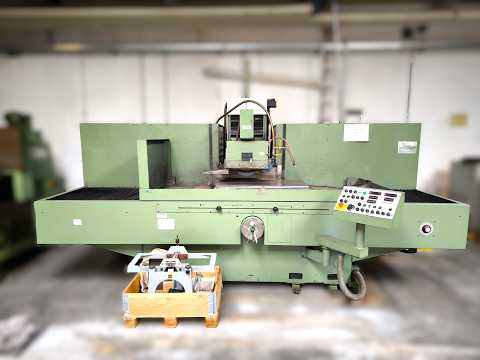

Surface grinding machine Stöckl FL 10/60 SPS

Availability: The item must be collected on either August 11 or August 12, 2026. The specific date will be communicated to you in advance and agreed upon.

Payment terms: Advance payment – by bank transfer

Internal No.: 175-2

Technical data:

Grinding area: 1000 × 650 × 400 mm

X-axis – Longitudinal movement
Guide rails: V-flat guides, coated
Table clamping surface: 1000 × 600 mm
Table longitudinal travel: 1100 mm
Table load capacity: 1000 kg
Table drive: hydraulic, external
Table feed rate: 3–25 m/min

Y-axis – Vertical movement
Vertical guides: V-flat guides, coated
Feed direction: Trapezoidal lead screw
Distance table–spindle center: 600 mm
Feed rate: 180 mm/min
Increment:
- Adjustable from 0.001–0.030 mm
- 0.001 mm with electric handwheel

Hnjdpfx Aaszmfd Sonsp
Z-axis – Traverse movement
Guide system: V-flat guides, coated
Traverse drive: Trapezoidal lead screw
Traverse feed: Adjustable 3–60 mm
Maximum traverse: 575 mm
Fine adjustment: 0.001 mm via fine adjustment knob

Grinding spindle head
Motor type: Flange motor
Grinding spindle drive: 11 kW
Grinding spindle speed: 1400 rpm
Spindle bearing: Precision spindle bearing
Spindle lubrication: Grease lubrication
Grinding spindle taper: 5:1 / 60 mm
Grinding wheel standard: 400 × 100 × 127 mm

Scope of supply:

Existing manuals as shown in the pictures
Balancing scale G+H as shown in the pictures

Dimensions & Weights:

Installation dimensions L x W x H approx.: 4280 x 2900 x 2700 mm
Weight approx.: 8000 kg

If you have any questions or would like to arrange a viewing, please do not hesitate to contact us!

Additional notes:

►Upon request, we can offer transport to the desired location.

►The quoted price is net plus VAT.

►The goods are sold without any guarantee.

►Technical data is subject to change.

►Subject to prior sale.

❗The sale of the goods is exclusively to business customers❗
