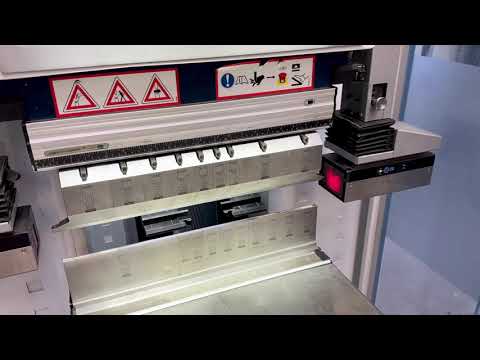

TRUMPF Trubend 7018

Electromechanical Press Brake
Manufacturer: TRUMPF Model: TruBend 7018
Year: 2008

Technical Data
Make: TRUMPF
Model: TruBend 7018
Year of manufacture: 2008
Pressing force: 18 t
Stroke: max. 150 mm
Bending length: 510 mm
Frame gap: 422 mm
Power supply: 5 kVA
Space requirements: L 1295 x W 1320 x H 2380 mm
Weight: approx. 1,800 kg

Standard Equipment
- Robust machine frame
- Press beam
- High-dynamic electronic direct drive (torque motor)
- Inductive length measuring system with temperature compensation
- Control cabinet air conditioning
- Ergonomic machine design
Fjdpfxoyir Sve Aa Sofu

Special Equipment
- Tool clamping system (Wila) top and bottom
- Integrated TRUMPF TASC 6000 CNC control
- Safety light curtain at the front
- Backgauge system: 6 axes: X1, X2, R1, R2, Z1, Z2
- Comfort support table
- BendGuard (with block laser)

Safety
- Side-mounted, pivoting safety doors
- Two-pedal foot switch, for both standing and seated operation
- CE certification

Tooling
Upper tool: straight punch R1/86°, H 120 mm, L 500 mm, segmented
Lower tool: V-die V6/84°, R 0.6, H 100 mm, L 500 mm, segmented

All information given without guarantee. Machine demonstration under power is possible at any time in our showroom.
