2축 멀티 블레이드

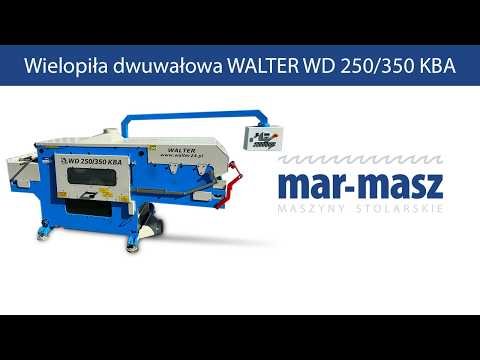

Walter WD 250 350 KBA

CATALOGUE NUMBER 8009

TECHNICAL DATA

- max. material width 600mm
- max. cutting height 170mm
- diameter of upper spindle 70mm
Fpedpjy Uvlxefx Aftjh
- diameter of lower spindle 70mm
- diameter of circular saw: option 1: 250mm/350mm, option 2: 300mm/300mm
- length of upper spindle working part 550mm
- length of lower spindle working part 550mm
- spindles equipped with a brake
- spindle wedges 2 pcs
- power of upper drive spindle motor 18.5kW
- power of lower drive spindle motor 22kW
- power of feed drive motor 2.2kW
- stepless feed speed adjustment via a frequency inverter
- average diameter of dust extraction nozzle 2x200mm

from above:
- pawls 2 rows
- toothed draw roller
- saw arbor
- toothed draw roller
- sliding roller, metal

from below:
- draw chains
- saw arbor
- draw chains
- sliding roller, metal
- overall dimensions L/W/H 3170/1450/1730mm
- weight approximately 2500kg

ADVANTAGES
– Polish production
– multi-blade, two-spindle saw
– year of production 2018
– documentation: DTR + CE
– used multi-blade saw, very good condition

Net price: 78900 PLN
Net price: 18786 EUR, depending on the exchange rate of 4.20 EUR
(Prices may change due to significant exchange rate fluctuations)
