편심 프레스 - 단일 컬럼

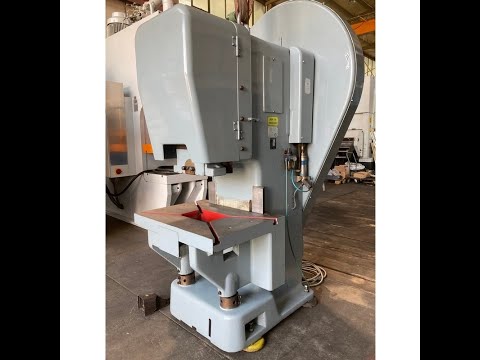

WEINGARTEN EXP 80 SV DK

pressure 80 t
throat 280 mm
stroke 10 - 140 mm
Stroke rate 85 / min
Distance table/ram, max. stroke up, adjustment up 380 mm
Table surface area 850 x 560 mm
Hole in the table 300 x 200 mm
Table height above floor 790 - 950 mm
Ppsdpfx Adeyx Ikue Aop
Ram surface 420 x 210 mm
Ram adjustment 60 mm
Power capacity 4,0 kW
Weight 4,5 t
Dimensions (WxDxH) 1,3 x 1,4 x 2,45 m
permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV)
with motor, rolling-key clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, foot operation
can be inspected in running condition in our warehouse
