밴드 톱 날카롭게 하는 기계
WINTER BANDSAWMAX 120 PNK-AB

고정 가격 부가세 별도

€14,900

제조 연도

2026

상태

신규

위치

Leipzig

밴드 톱 날카롭게 하는 기계 WINTER BANDSAWMAX 120 PNK-AB

지도 표시

기계 정보

기계 명칭:: 밴드 톱 날카롭게 하는 기계

제조업체:: WINTER

모델:: BANDSAWMAX 120 PNK-AB

제조 연도:: 2026

상태:: 새로운

가격 및 위치

고정 가격 부가세 별도

€14,900

위치:: Leipzig

전화하기

제안 세부 정보

광고 ID:: A21260342

참조 번호:: 1327-10692

업데이트:: 마지막 업데이트: 27.02.2026

설명

Sawblade width max. 120 mm
Weight 350 kg
Motor output 1,3 kW

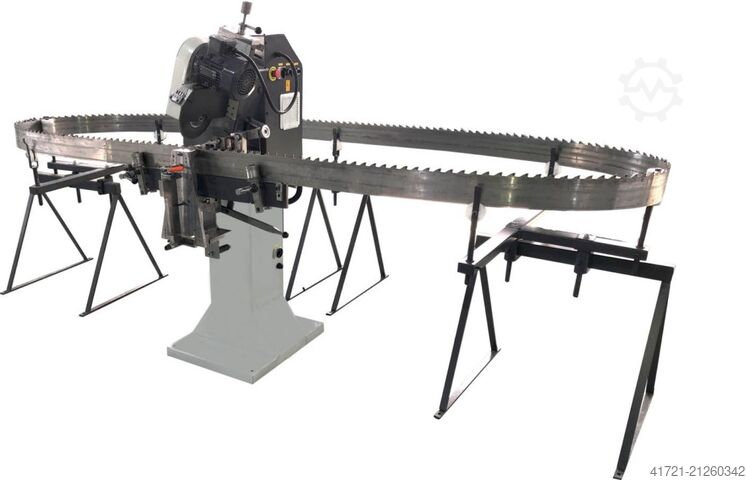

WINTER AUTOMATIC BAND SAW GRINDING MACHINE BANDSAWMAX 120 PNK-AB

PNK-AB is specially designed for grinding the teeth of various band saw blades used in various forms, width and thickness.
Compact and rigid grinding unit moving on linear bearings of PNK-AB machine provides precise and stable grinding

Technical specifications:

- Band Saw Width 15-120mm
- Tooth pitch Max. 60mm Tooth depth 0-30mm

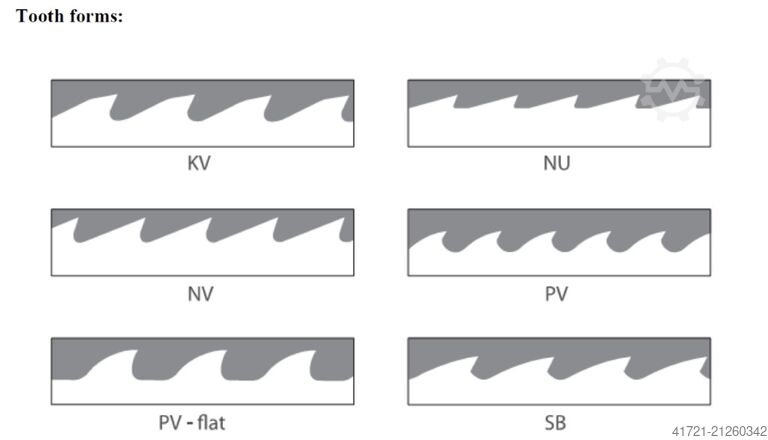

- Tooth forms PV,NV,KV,PU,NU
- Hook angle -10° to +30°
- Feeding rate 0-90 teeth/min.
- Motor quantity 2
- Grinding wheel motor – 1.1kW, 1400 r.p.m.
- Gearbox motor double-rev. – 0.55kW, 1400 r.p.m
- Grinding wheel diameter Ø250mm
- Grinding wheel bore diameter Ø20mm
- Grinding wheel thickness 8mm/10mm/13mm (depending tooth pitch)
- Operating voltage 400V, 3Ph, 50-60Hz
- Total power ~1,3kW
- Dimensions 80*120*175cm
- Net/gross weight 350/375kg

PNK-AB General Features:

- Automatic grinding of band saw blades up to 120mm width.
- Grinding wheel riding on linear rails.
- Non-corroding and hardening plating on all mechanical components.
- On/off switch.
- Max 60mm tooth pitch.
- Ease of use.
- Minimum space required.
- Fast and precise grinding of NV,PV and KV tooth forms.
- Manual central lubrication.
- Manual saw holder and blade lifting system.
- Optional circular(HSS) and gang saw grinding attachments.
- Production conformed with CE standards
Nkjdpfx Aeyk Ib Ajh Dju

Capacity: Grinding up to 30 band saws per day.

Optional supplements:
- CBN Woodmizer wheel nett price EUR 375,-
- Diamond wheel for Bimetal nett price EUR 520,-
- Bakelite wheel 13mm nett price EUR 75,-
- Ceramic wheel 16mm nett price EUR 115,-
- CBN grinding wheel nett price EUR 1.125,-
- Spare Index Finger nett price EUR 70,
- Index finger pin nett price EUR 20,-
- Wheel dresser attachment nett price EUR 1.170,-
- Wheel dresser diamond nett price EUR 100,-
- Circular (HSS) saw grinding attachment nett price EUR 960,-
- Frame saw grinding attachment nett price EUR 2.700,-/1meter
- Coiler and uncoiler system for band saw manufacturers nett price EUR 5.800,-
- Sealed packing nett price EUR 570,-
- Attachment for double side saws nett price EUR 1.560,-
- Pneumatic system for second indexing finger nett price EUR 1.140,-
- CAM for GD tooth profile (WM) blades nett price EUR 330,-
