스크류 압축기

Airpol PR75

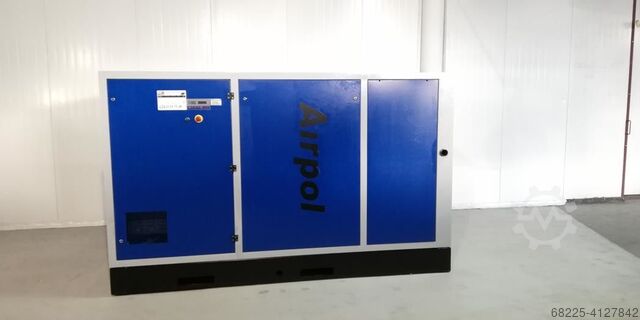

AIRPOL PR75 Screw compressor

Excess pressure [MPa] - execution options: 0.75 / 1.0 / 1.3
Variable performance:
Capacity min-max [m3 / h] [1.0 MPa]: 218 - 740...
Capacity min-max [m3 / h] [1.0 MPa]: 218 - 740
Capacity min-max [m3 / h] [1.3 MPa]: 212 - 565
Compressed air connection: G 2
Ambient temperature [° C]: +5 ÷ +40
Cooling air demand [m³ / h]: 11700
Temperature of compressed air [° C]: about 10 above ambient temperature
Sound level [db (A)]: 75
Transmission mode: direct drive
Rated engine power [kW]: 75
Rated fan motor power [kW]: 4
Degree of motor protection: IP55
Supply voltage [V]: 400
Recommended cross section of the power cord [mm2]: 3x70 + PE
Protection [A]: 160

Manufacturer: Airpol
Model: PR75
Height: 2200 mm
Gusdpfjd S Udcsx Ag Rea
Width: 1500 mm
Length: 1675 mm
Weight: 1900 kg
Total power: 75 kW
