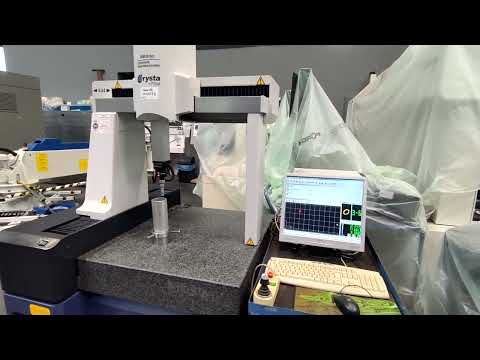

Coordinate Measuring Machine

Mitutoyo Crysta-Plus 544

Technical details:

x-travel: 505 mm
y-travel: 405 mm
z-travel: 405 mm
measuring range X-axis: 505 mm
measuring range Y-axis: 405 mm
measuring range Z-axis: 405 mm
compressed air: 0,4 MPa
voltage: 100/120/220/240 V / Hz
total power requirement: 700 Watt
machine weight approx.: 0,5 t
dimension machine xH: 1,1 x 1,1 x 2,185 m

further features:
-it is a linear measuring system with resolution 0.0001mm
-measuring speed X/Y+Z-axes 430 mm/s
-acceleration X/Y+Z-axes 980 mm/s²
-measuring table made of granite, size LxW: 638 x 860mm, with workpiece clamp
-max. tool size height max. 545mm weight max. 180kg

Bodpfx Adou S Izcshjww
Equipment:
-Measuring probe Renishaw TP200
-Computer Fujtsu - Siemens Scenic P; protection class IP30
-without measuring probe
-Software available (USB Stick)



*
